CONSTRUCTION
8mm AH-36 high tensile steel Shell plating up to main deck level with ICE Strengthened AREA (ICE BELT).
6mm A-Grade steel Main deck and inner primary structure thickness
5mm A-Grade steel deck plating
GRP Superstructure over upper deck (SP-Gurit PVC , Metyx glass fiber , Duratek Epoxy resin )
Duratek Epoxy Filler application on opendeck leveling
MAIN CHARACTERISTICS General
Built by Soyaslan Yachts
Year 2024
Length 23,95m
Beam 7,15m
Draft 2,10m
Classification CE Category A
Flag Belgian
Gross tonnage 165
Net tonnage -
Designer Soyaslan Design
Naval Architect Soyaslan Design
Interior Designer BAZ Yacht Design
Capacities
Speed 12 knots Max, 10 knots Cruise
Range 4000Nm @ 10,5 knots
Fuel capacity 24150 lt
Water capacity 3750 lt
Black water capacity 1800 lt
Grey water capacity 1800 lt
Fuel consumption 225 lt @12 knots , twin engine
MACHINERY
Engines 2 x CUMMINS, 410HP @2300RPM
Engine model QSL9-SW
Fuel Diesel
Propulsion ERC Fixed Pitch 4-Blade Propellers
Gearboxes ZF360, Ratio: 3:1, Live PTO on each engine
Steering DATA DDS 2 x 290S - ESC 380V Electro-Hydraulic steering system
Stabilizers SIDE-POWER SPS94B VF1350 1,4 sqm x 2 fin system with stabilization at rest
Generators
Generators 2 x Cummins Onan MDKBU, 27kW
Electricity
Electricity 380VAC 3Ph/220VA/24VDC, 50Hz
Inverter 2 x Victron Multiplus 24/5000/120-100
Shore power 27 kWA Shore power plug on Starboard side
27 kWA Shore isolation transformer
25 kWA Galley Transformer
25 kWA Service Transformer
Batteries VARTA or Eq. 480A (24V x 4) Service Battery Bank
VARTA or Eq. 2 x 210A, 2 x110 A Starting battery Bank
VARTA or Eq. 2 x 210Ah VHF Battery Bank
BATRON 48V 10KWH LIFEPO4 Battery Bank
Air Conditioning
2 x Chiller units , Webasto 144000BTU, Fancoils in each in living area with Webasto diesel heating system
Other Machinery
Bow Thruster: DATA SP 420 – 29 kW 420 kgf.
Stern Thruster: DATA SP 420 – 29 kW 420 kgf.
Hydraulic Power Pacl: DHS 200-2x100 2BT-5W
Water makers: Seamar Sm350 350lt/hour with UV Filter
Propellers: Fixed Pitch 4 Blade
Shafts: 90 mm. Stainless Steel 316L
Fuel filters: 1 x Simplex Fuel Water Seperator Filter for engines
Fire bilge pump: 1 x Fire Pump 380V AC
Boilers: 2 x ISOTERM 75lt.
WC's: Tecma Silence Plus 24V DC
ACCOMMODATION
Accommodation for:
OWNER 1 x Full Beam Owner cabin at main deck
GUESTS 1 x Full Beam VIP Cabin
2 x Double Guest Cabin
1 x Twin Guest Cabin
CREW 1 x Double Crew Cabin
1 x Twin Crew Cabin
COMMUNICATIONS, NAVIGATION & ENTERTAINMENT EQUIPMENT
Communications Equipment
Simrad RS20 VHF with Class-D DSC
Navigation Equipment
2 x Simrad NSO evo3S MPU with 1 x MO24-T Display
1 x MO24-T 24" Wide Touch Screen High Bright Monitor
HALO 20+ Pulse Compression Dome Radar
I-MARINE Class-B AIS Transponder w/o Display
SİMRAD -"HS60 GPS Compass"
SIMRAD -"A2004 AutopilotPack (A2004, AC70, RF300) with precision-9 compass
Entertainment Equipment
1 x INTELLIAN -"i6P TVRO 60 cm Dish - Universal Quad LNB & Auto Skew
Main salon : 55” Samsung LED TV
Upperdeck salon : 55” Samsung LED TV
Sun deck : None
Owners cabin : Mirror TV - 48” Samsung LED TV
Guest cabins : None
Captains Cabin : None
DECK EQUIPMENT
2 x DZC 1400-2 HPI/Kr-14K Ø14 mm. AISI 316L Hydraulic Anchor Windlass
2 x 100kg HHP Hull Type Galvanized Anchors
2 x 70m 14mm DIN 766 Galvanized steel chain
2 x DHC 1000 HPI/Kr AISI 316L Hydraulic Capstain
Custom SOMER Yacht Hydraulic Crane with 800kg SWL and 4,2mt. reach
SAFETY & SECURITY EQUIPMENT
2 x 10 per. Zodiac B-Pack
FM-200 system for engine room
2 x Fire Stations
Concilium Fire detection system for all areas
Portable fire extinguishers
NAVAL ARCHITECTURAL DESIGN: SOYASLAN DESIGN
INTERIOR DESIGN: BAZ Design Studio

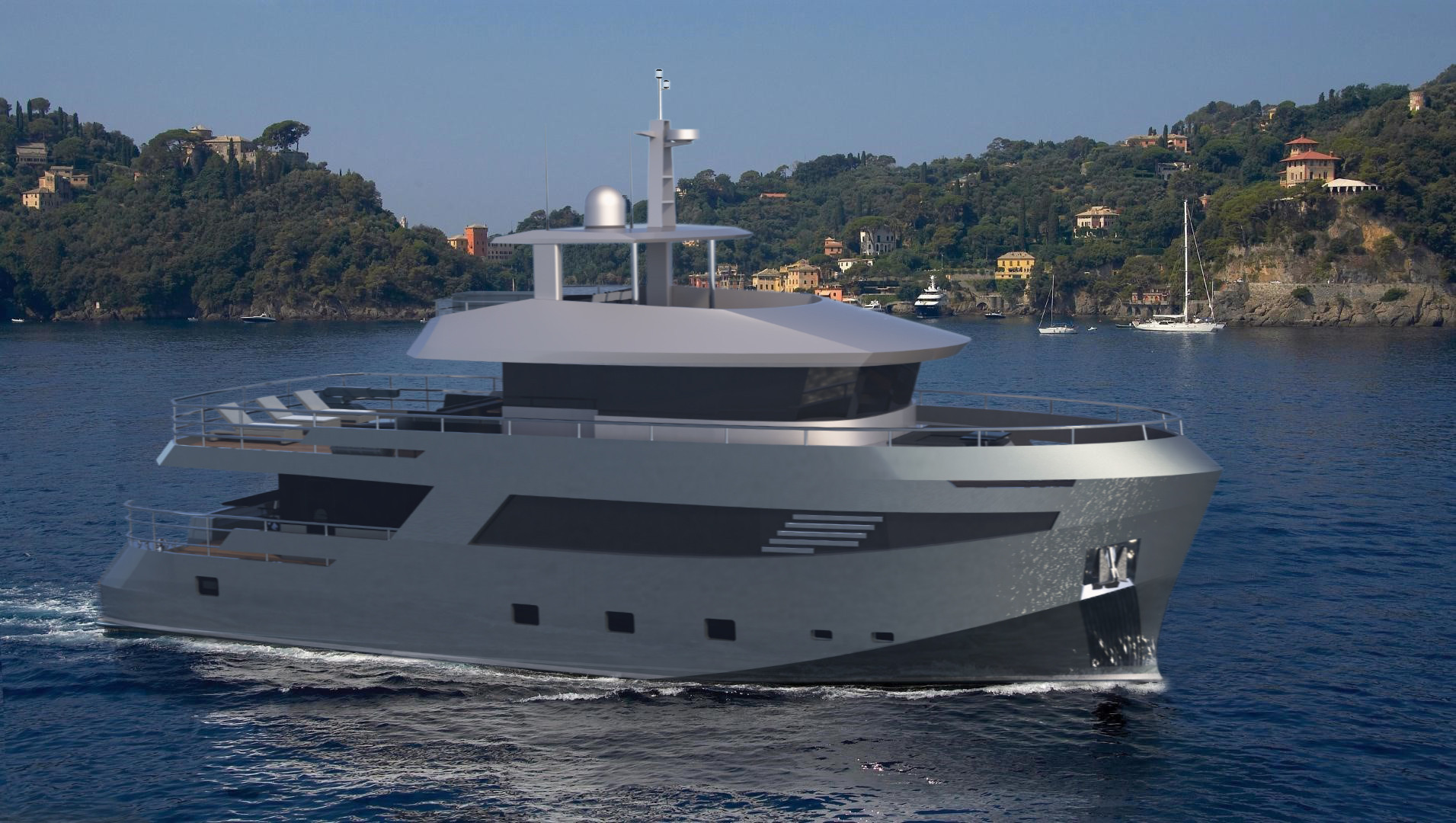

| Proje Adı | : | M/Y ICE II |
|---|---|---|
| Type | : | Motor Yacht |
| Uzunluk | : | 01m - 24m |
| Year | : | 2024 |
